320x120 Dots Small TFT Screen Bar Type 2.9inch Resistive LCD
Display
High Quality 320(RGB)X120 Dots 2.9" Bar Type TFT LCD 6 Leds Small
Screen
Product Description
| Feature | Spec |
| Characteristics | Size | 2.9inch |
| Resolution | 320(horizontal)*120(Vertical) |
| Interface | RGB 18bit |
| Connect type | Connector |
| Color Depth | 262k |
| Technology type | a-Si |
| Display Spec. Pixel pitch (mm) | 0.2205 x 0.2205 |
| Pixel Configuration | R.G.B. Vertical Stripe |
| Display Mode | Normally White |
| Driver IC | SSD2116Z |
| Viewing Direction | 12 O'clock |
| Gray Inversion Direction | 6 O'clock |

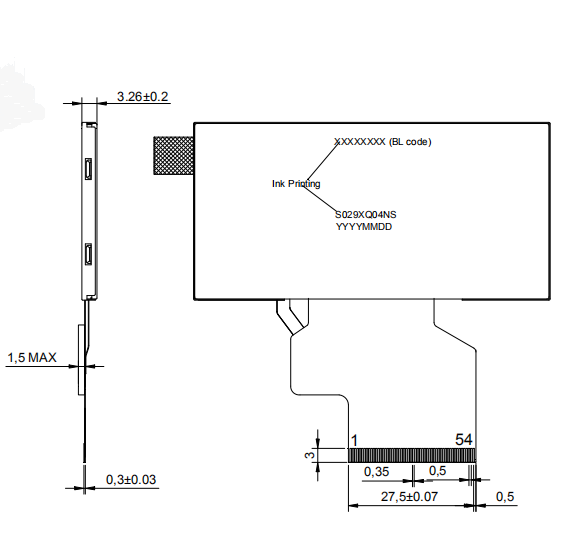

| Mechanical | LCM (WxHxD)(mm) | 76.90*38.22*3.26 |
| Active Area(mm) | 70.56 x 26.46 |
| With/Without TSP | Without TSP |
| Weight (g) | TBD |
| LED Numbers | 6 LEDs |
High quality 320(RGB)x120 Dots 2.9" bar type TFT LCD 6 leds small
screen
This product is our standard product, used in Android tablet
computers, video players, catering equipment, CNC control and other
display panels. All products can provide touch panels, PCBA
solutions and complete machine solutions. Products can be made
according to customer requirements Customization; if you have any
questions about the product, please contact us as soon as possible,
we will serve you wholeheartedly, thank you!
Please let us know your requirements on panels:
1), Size
2), Resolution
3), Brightness/Luminance
4), Viewing Angle
5), Light Source
6), Signal Interface: LVDS or eDP or V-by-One
or tell us the exact model # for reference.
we will quote the same model # or recommend alternatives when we
couldn't provide the exact model or when we think there is a better
choice for you.
