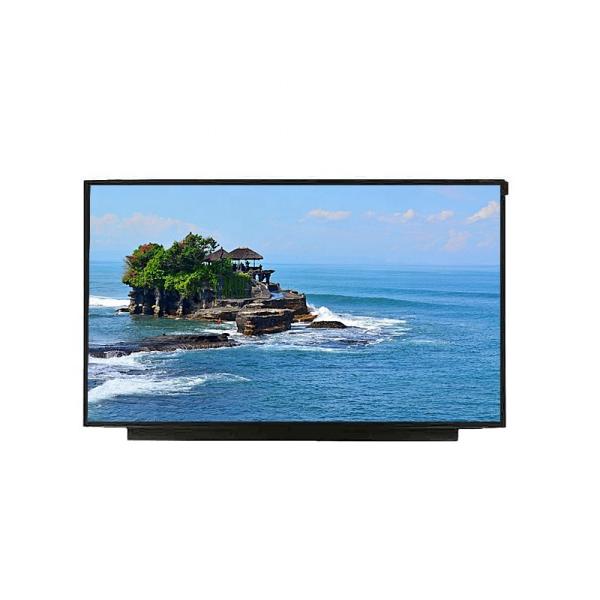

18.5 Inch Flat Lcd Panel Display Manufacturers
Product Description
Lens features
Shape : Irregular and hole
Color: Silk printing, Logo
Glass Materials: Glass, PMMA
Treatments: AG, AR, AF, Anti-explosion
Thickness: 0. 55mm.0.7mm
1.0mm, 1.1mm, 1.8mm, 2.omm,
3.0mm, 4. 0mm, 5. 0mm, 6.0mm
| tem: | 18.5.'' high brightness LCD panel |
| Model : | HY185-E10-Z |
| Screen Size: | 18.5 inches |
| Display Area: | 409.8*230.4mm |
| Panel Type : | High brightness LCD with WLED |
| Configuration: | RGB Vertical Stripe |
| Resolution: | 1366*768 pixel |
| Brightness: | 1000nits |
| Constrast Ratio: | 1000:1 (Typ.) (TM) |
| Pixel Pitch | 0.264(per one triad) × 0.264 |
| Driver Elements: | TFT-LCD |
| Surface Treatment: | Anti-glare type, Hardness 3H |
| Display Color: | 16.7M colors (RGB 6-bits +Hi-FRC data) |
| Display Mode: | Normally White |
| Interface Type: | LVDS |
| Input Voltage: | DC12V |
| Power : | 23W |
| Weight: | 1.8kg |
| Backlit Lifetime: | 50000hrs |
| Operating Temp.: | 0°- 60°C |
| Storage Temp.: | -20°- 60°C |
18.5 inch flat lcd panel display manufacturers
This product is our standard product, used in Android tablet
computers, video players, catering equipment, CNC control and other
display panels. All products can provide touch panels, PCBA
solutions and complete machine solutions. Products can be made
according to customer requirements Customization; if you have any
questions about the product, please contact us as soon as possible,
we will serve you wholeheartedly, thank you!
1, We provide a full range of products and services,Comprises
display screen and touch screen,
Technical support and customization.
2, Our production capacity is 30000 pieces per day,1million pieces
per month.
3, The R&D team has more than 10 years of development and
design experience.
4, The production quality team has more than 10 years of experience
in production quality
management,strictly in accordance with the ISO9001 management
sytem,products meet Rosh
certification.
5, Professional after-sales team at any time to provide services to
customers.
