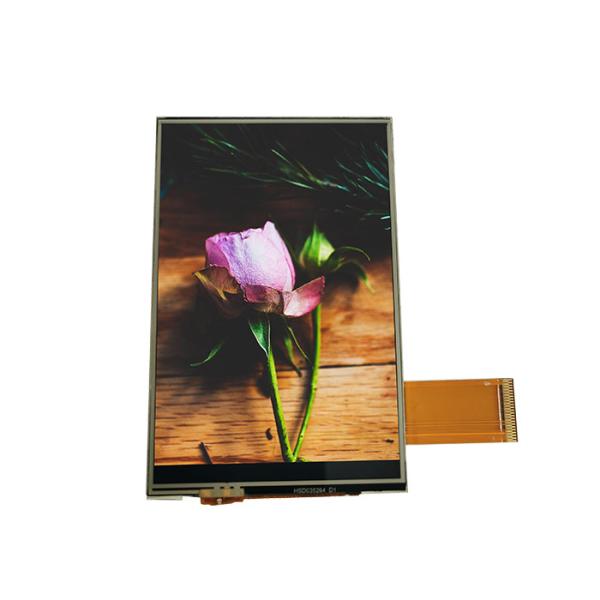

3.5inch 320x480 RGB Industrial Touch Screen Panel RTP Resistive
3.5inch TN 12 O'Clock 320x480 RGB Touch Lcd Display Module With RTP
Resistive Touch Panel
Product specifications
he body is thin and saves space. Compared with the more bulky CRT
monitor, the LCD monitor only needs one third of the space of the
former;
| 1 | Physical Parameter | |
| 2 | Model | HY03050002 |
| 3 | Size (Inch) | 3.5" |
| 4 | Resolution | 320×RGB×480 |
| 5 | Color | 65536 colors (16 bit) |
| 6 | Viewing Area | 48.96*73.44 |
| 7 | Pixel Configuration | R.G.B. Vertical Stripe |
| 8 | Outline Dimension | 55.26*84.69*3.20 |
| 9 | Net Weight | 85 g(N)/ 100 g(T) |
| 10 | TFT Panel | A+ Class Industry Panel |
| 11 | Touch Screen | Industry Level 4 wire resistance Or without touch screen is
optional. |
| 12 | Backlight Parameter | |
| 13 | Backlight Type | LED |
| 14 | Brightness | 300cd/m2 |
| 15 | Contrast | 500:1 |
| 16 | Backlight life | 30,000 hours |
| 17 | Viewing Angle | 70°/ 70°/ 50°/ 70° (L/R/U/D) |
| 18 | Working Temperature | -20°C ~ +70°C |
| 19 | Working Humidity | 55°C, 85% |
| 20 | Storage Temperature | -30°C ~ +85°C |
| 21 | Screen Mode | Digital |
| 22 | Test Report | |
| 23 | MTBF | 50,000H |
| 24 | Working Temperature | -20°C ~ +70°C |
| 25 | Air Humidity | 60°C, 90% |
| 26 | Continuous Vibration Testing | 10-55Hz, 1.5mm, 10G |
| 27 | Impact Acceleration Testing | 6ms, 100G |
| 28 | ESD Testing | 10KV |
| 29 | Radiation Reliability Testing | 44W |
Q: How to ensure long-term stable delivery?
A: First,we will recommend products that can be delivered for a
long time to customers,and second,we will have a large number of
stocks in advance for a long time.
Q: What is your mode of payment for mass production?
A: Generally,after receiving 50%-100% deposit from customers,they
begin to prepare materials. Delivery is about 5 working days after
receipt of the final payment.
Q: Will you inspect the goods before delivery?
A: Yes, we’ll ship the goods after 100% inspection.
Q: How long is your warranty period?
A: We guarantee the quality for one year.
3.5inch TN 12 o'clock 320x480 RGB touch lcd display module with RTP
resistive touch panel
3.5-inch display module. The product range is wide, suitable for
calculators, small instruments, medical equipment, small equipment
control panels, etc. Products can be customized according to
customer requirements; if you have any questions about the
products, please contact us as soon as possible, we will serve you
wholeheartedly, thank you
