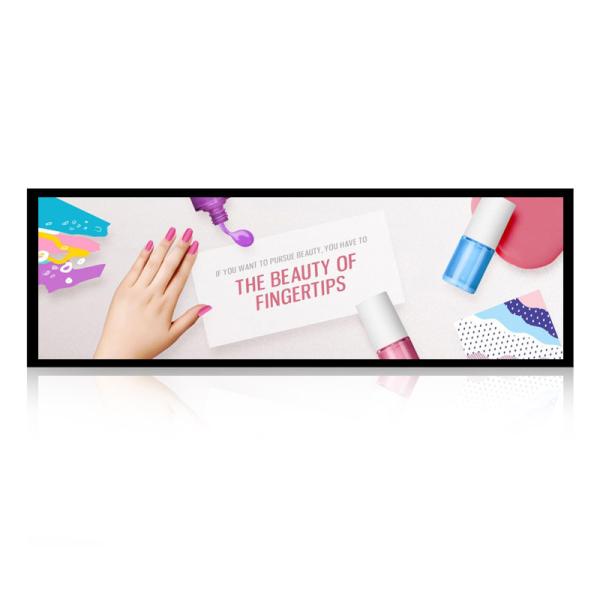

Ultra Wide Stretched Type Bar Type Tft Lcd Display 1920x1080 28.6
Inch
Product Description
| Product Parameters |
| BASIC PARAMETERS OF LCD STRETCHED BAR SCREEN |
| Screen Features | LCD Stretched Bar Screen |
| Product Number | HY28060001 |
| Screen Size | 28.6 Inches |
| Display area | 941.184x529.416 | CPU | A20 Dual Core |
| Aspect Ratio | 16:09 | CPU Clock Speed | 1.6GHz |
| Resolution | 1920x1080 | RAM | DDR3 1G |
| Pixel spacing(mm) | 0.4902x0.4902 | Memory | 8G (Extensible) |
| Number of Color | 16.7M | Interface specification | USB*2/RJ45*1/SD*1 |
| Brightness | 300cd/m2 | network | Ethernet,WiFi |
| Contrast | 1500:01:00 | Information Publishing System | Multimedia Information Publishing Software 5.0 |
| View angle | 178°/178° | Speaker | 2*8Ω5W |
| Response time | 5ms | Working Temperature | 0℃~50℃ |
| Life Time | ≥50000h | Working humidity | 20%~80%(Non frosted) |
| Machine weight | 35Kg | Power | AC 110~240V,50/60Hz |
| Chipset | Intel Chipset |
| Memory | 4G DDR3 Memory/64G Solid Hard Disk |
| GPU | Intel Core GPU Intel HD Graphics |
| Interface | USB2.0*2, USB 3.0*2, RJ45 network interface*1, HDMI*1, LINE
output*1, MIC input*1, support wifi; |
| Operating system | Windows 7 Ultimate |
TFT LCD Display Feature:
Supports development boards such as Mega2560 for plug-in use
without wiring
480X320 resolution, clear display, support for touch function
Support 16-bit RGB 65K color display, display rich colors
8-bit parallel bus, faster than serial SPI refresh
On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V
operating voltage
Easy to expand the experiment with SD card slot
Provides an library with a rich sample program
Military-grade process standards, long-term stable work
Provide underlying driver technical support
Screen Monitor Liquid Crystal Display Module Shelf Led Bus Ultra
Wide Stretched Type Bar Tft Lcd
This product is our standard product, used in Android tablet
computers, video players, catering equipment, CNC control and other
display panels. All products can provide touch panels, PCBA
solutions and complete machine solutions. Products can be made
according to customer requirements Customization; if you have any
questions about the product, please contact us as soon as possible,
we will serve you wholeheartedly, thank you!
